Product Summary
The FINAN Formwork TFL 2000 is primarily designed for the re-cycle of the slab formwork systems from floor to floor between each casting phase.
It is also suitable for transporting other formwork accessories & construction equipment during the civil phase of the works. An efficient & safe system of vertical distribution removes the demands on busy crane hook periods, as well as the potential crane down times, during windy periods.
Product Features

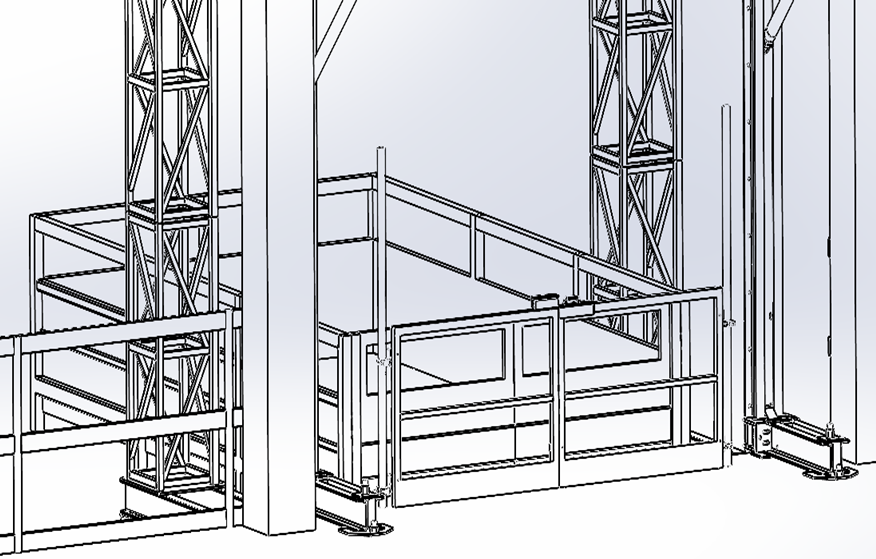

Formwork Lifting Hoist
- Integral railings
- Integral loading gates
- Integral loading ramp
- Protective grating Formwork Lifting Hoist 1.80m may also be mounted if desired
Product Features
Bottom to top-floor height
- Erected from an engineered ground base, suitable to work up to 100 M with nominated floor tie offs
- When suspended from floor slab: standard appli-cation up to 15 m
Landing level safety gates
- For safeguarding the loading and offloading points
- Landing level safety gates for every floor
- Integral control for every floor
Drive mechanism
- The Formwork Lifting Hoist is driven electromechanically.
- Required supply voltage: 400V/50Hz (fuse protection min. 3 x 32A, slow-blow)
Lifting speed
- Starting speed: 5 m/min.
- Lifting speed: 10 m/min.
